Quilt is a data mesh that verifies the integrity of your data so that teams can find, understand, and file discoveries based on data of any size or in any format.
A Quilt instance is a private portal that runs in your virtual private cloud (VPC).

Help and Advice

We encourage users to contact us before deploying Quilt. We will make sure that you have the latest version of Quilt, and walk you through the CloudFormation deployment.
We recommend that all users do one or more of the following:

Architecture

Each instance consists of a CloudFormation stack that is privately hosted in your AWS account. The stack includes backend services for the web catalog, single sign-on, user identification and access, an ElasticSearch cluster, and more.
Quilt uses subnets and security groups to isolate network services and runs key services within the VPC.
A private stack with an inward load balancer is shown below.
Architecture (private ELBv2)
For an internet-facing load balancer the data plane remains the same, as shown below.
Architecture (public ELBv2)

Network

You may provide your own VPC and subnets to a Quilt stack or have the Quilt stack create its own network.
If you provide the subnets you may choose to reuse subnets across parameters. For example you can use the same subnets for the Private and User subnet parameters.
You may optionally provide your own VPC CIDR block if the default block of 10.0.0.0/16 conflicts with shared or peered VPC services. We recommend a CIDR block no smaller than /24 (256 addresses) for production, multi-AZ deployments. Larger CIDR blocks are easier to upgrade to new Quilt versions with expanded services.
For cost-sensitive deployments, Quilt ECS services can be configured to use a single AZ.
You may use a combination of interface endpoints and gateway endpoints to restrict the data plane traffic shown above to your VPC. See Private endpoint access for more.

Production, multi-AZ subnet division for private ELBv2 (you provide the network)

Type
AZ
Description
Services
IPs needed†
Private
a
Routes to Internet
ECS, Lambda
32
Private
b
"
"
32
Intra
a
Does not route to Internet
RDS, OpenSearch*
32
Intra
b
"
"
32
User
a
Reachable by GUI catalog users
App load balancer, API Gateway Endpoint
16
User
b
"
"
16
* One IP per master node, one IP per data node
† Includes 5 IPs for AWS (network, routing, DNS, reserved, broadcast) plus room for new services in future updates.
Below are the subnet configurations and sizes for Quilt version 2.0 networks, new as of June 2023. The configuration is similar to the AWS Quick Start VPC.

Subnet division when Quilt creates the VPC

  • 2 public subnets for NAT gateways and an internet-facing application load balancer (1/4 the VPC CIDR)
  • 2 private subnets for Quilt services in ECS or Lambda, and an inward facing application load balancer (1/2 of the VPC CIDR)
  • 2 private subnets for intra-VPC traffic to and from the Quilt RDS database and OpenSearch domain (1/8 of the VPC CIDR)
  • Unused (1/8 of the VPC CIDR)

Sizing

The Quilt CloudFormation template will automatically configure appropriate instance sizes for RDS, ECS (Fargate), Lambda and Elasticsearch Service. Some users may choose to adjust the size and configuration of their Elasticsearch cluster. All other services should use the default settings.

Elasticsearch Service Configuration

By default, Quilt configures an Elasticsearch cluster with 3 master nodes and 2 data nodes. Please contact the Quilt support team before adjusting the size and configuration of your cluster to avoid disruption.

Cost

The infrastructure costs of running a Quilt stack vary with usage. Baseline infrastructure costs start at $620 and go up from there. See below for a breakdown of baseline costs for us-east-1 at 744 hours per month.
Service
Cost
Elasticsearch Service
$516.83
RDS
$75.56
ECS (Fargate)
$26.64
Lambda
Variable
CloudTrail
Variable
Athena
Variable
Total
$619.03 + Variable Costs

Health and Monitoring

To check the status of your Quilt stack after bring-up or update, check the stack health in the CloudFormation console.

Elasticsearch Cluster

If you notice slow or incomplete search results, check the status of the Quilt Elasticsearch cluster. To find the Quilt search cluster from CloudFormation, click on the Quilt stack, then "Resources." Click on the "Search" resource.
If your cluster status is not "Green" (healthy), please contact Quilt support. Causes of unhealthy search clusters include:
  • Running out of storage space
  • High index rates (e.g., caused by adding or updating very large numbers of files in S3)

Service Limits

This deployment does not require an increase in limits for your AWS Account.

External Dependencies

In addition to containers running in Fargate, Quilt includes a set of AWS Lambda functions. These lambda functions are not scanned by AWS Marketplace. The code for the lambda functions is open-source and has been verified through an independent security audit.

Requirements and Prerequisites

Knowledge Requirements

Running Quilt requires working knowledge of AWS CloudFormation, AWS S3 and Elasticsearch Service.

Before you install Quilt

You will need the following:
  1. 1.
    An AWS account.
    1. 1.
      The service-linked role for Elasticsearch
    This role is not created automatically when you use Cloudformation or other APIs.
    You can create the role as follows: aws iam create-service-linked-role --aws-service-name es.amazonaws.com
  2. 2.
    IAM Permissions to create the CloudFormation stack (or Add products in Service Catalog).
    1. 1.
      We recommend that you use a CloudFormation service role for stack creation and updates.
    2. 2.
      See this example service role for minimal permissions to install a Quilt stack.
    Ensure that your service role is up-to-date with the example before every stack update so as to prevent installation failures.
  3. 3.
    The ability to create DNS entries, such as CNAME records, for your company's domain.
  4. 4.
    An SSL certificate in the same region as your Quilt instance to secure the domain where your users will access your Quilt instance.
    1. 1.
      For example, to make your Quilt catalog available at https://quilt.mycompany.com, you require a certificate for either *.mycompany.com or for the following 3 domains: quilt.mycompany.com, quilt-registry.mycompany.com and quilt-s3-proxy.mycompany.com in the AWS Certificate Manager.
    2. 3.
      The ARN for this certificate or set of certificates is required for use as the CertificateArnELB CloudFormation parameter.
  5. 5.
    For maximum security, Quilt requires a region that supports AWS Fargate. As of this writing, all U.S. regions support Fargate.
  6. 6.
    An S3 Bucket for your team data. This may be a new or existing bucket. The bucket should not have any notifications attached to it (S3 Console > Bucket > Properties > Events). Quilt will need to install its own notifications. Installing Quilt will modify the following Bucket characteristics:
    1. 1.
      Permissions > CORS configuration (will be modified for secure web access).
    2. 2.
      Properties > Object-level logging (will be enabled).
    3. 3.
      Properties > Events (will add one notification).
    Buckets in Quilt may choose to enable versioning or disable versioning. It is strongly recommended that you keep versioning either on or off during the entire lifetime of the bucket. Toggling versioning on and off incurs edge cases that may cause bugs with any state that Quilt stores in ElasticSearch due to inconsistent semantics of ObjectRemoved:DeleteMarkerCreated.
  7. 7.
    Available CloudTrail Trails in the region where you wish to host your stack (learn more).
  8. 8.
    A license key or an active subscription to Quilt Business on AWS Marketplace.
    1. 1.
      Click Continue to Subscribe on the Quilt Business Listing to subscribe then return to this page for installation instructions.
    2. 2.
      The CloudFormation template and instructions on AWS Marketplace are infrequently updated and may be missing critical bugfixes.

AWS Marketplace

You can install Quilt via AWS Marketplace. As indicated above, we recommend that you contact us first.

AWS Service Catalog

  1. 1.
    Email [email protected] with your AWS account ID to request access to Quilt through the AWS Service Catalog and to obtain a license key.
  2. 2.
    Click the service catalog link that you received from Quilt. Arrive at the Service Catalog. Click IMPORT, lower right.
  3. 3.
    Navigate to Admin > Portfolios list > Imported Portfolios. Click Quilt Enterprise.
  4. 4.
    On the Portfolio details page, click ADD USER, GROUP OR ROLE. Add any users, including yourself, whom you would like to be able to install Quilt.
  5. 5.
    Click Products list, upper left. Click the menu to the left of Quilt CloudFormation Template. Click Launch product. (In the future, use the same menu to upgrade Quilt when a new version is released.)
  6. 6.
    Continue to the CloudFormation section. Note: the following screenshots may differ slightly fromm what you see in Service Catalog.

CloudFormation

You can perform stack update and creation with the AWS Console, AWS CLI, Terraform, or other means.
In all cases it is highly recommended that you set the --on-failure policy to ROLLBACK so as to avoid incomplete rollback and problematic stack states. In the AWS Console this option appears under the phrase "Stack failure options."
  1. 1.
    Specify stack details in the form of a stack name and CloudFormation parameters. Refer to the descriptions displayed above each text box for further details. Service Catalog users require a license key. See Before you install Quilt for how to obtain a license key.
  2. 2.

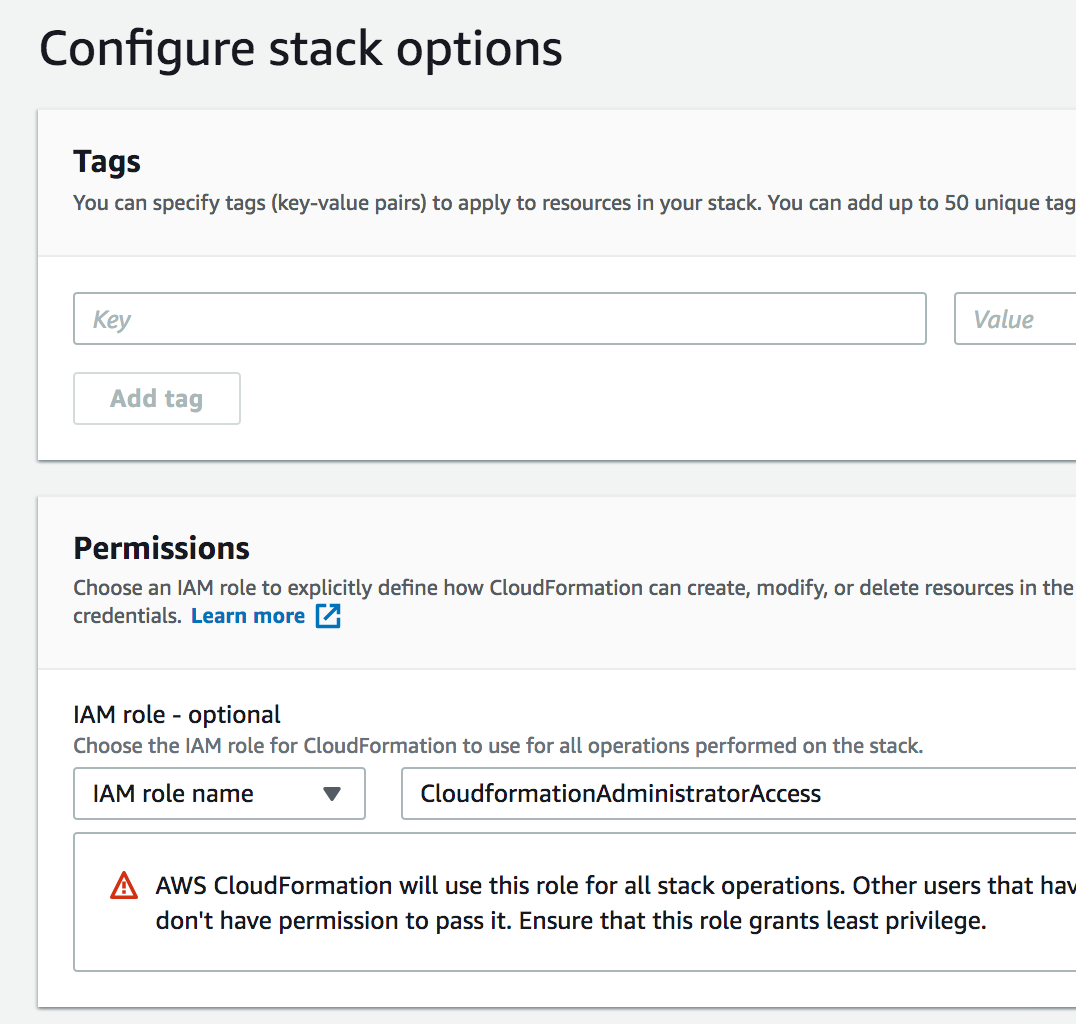

    If you wish to use a service role, specify it as follows:
  3. 3.
    Service Catalog users, skip this step. Under Stack creation options, enable termination protection. This protects the stack from accidental deletion. Click Next.
  4. 4.
    Service Catalog users, skip this step. Check the box asking you to acknowledge that CloudFormation may create IAM roles, then click Create.
  5. 5.
    CloudFormation may take bewteen 30 and 90 minutes to create your stack. You can monitor progress under Events. On completion you will see CREATE_COMPLETE.
  6. 6.
    To finish the installation, you will want to view the stack Outputs.
In a separate browser window, open the DNS settings for your domain. Create the following CNAME records. Replace italics with the corresponding stack Outputs.
CNAME
Value
<QuiltWebHost> Key
LoadBalancerDNSName
<RegistryHostName> Key
LoadBalancerDNSName
<S3ProxyHost> Key
LoadBalancerDNSName
Quilt is now up and running. You can click on the QuiltWebHost value in Outputs and log in with your administrator password to invite users.

Routine Maintenance and Upgrades

Major releases will be posted to AWS Marketplace. Minor releases will be announced via email and Slack. Join the Quilt mailing list or Slack Channel for updates.
To update your Quilt stack, apply the latest CloudFormation template in the CloudFormation console as follows.
  1. 1.
    Navigate to AWS Console > CloudFormation > Stacks
  2. 2.
    Select your Quilt stack
  3. 3.
    Click Update (upper right)
  4. 4.
    Choose Replace current template
  5. 5.
    Enter the Amazon S3 URL for your template
  6. 6.
    Click Next (several times) and proceed to apply the update
Your previous settings should carry over.

Create a new stack with an existing configuration

You can create a new Quilt stack with the same configuration as an existing stack.
Configuration here refers to the Quilt stack buckets, roles, policies, and other administrative settings, all of which are stored in an RDS instance.
Perform the following steps.
  1. 1.
    Contact your Quilt account manager for a template that supports the "existing database", "existing search", and "existing vpc" options.
  2. 2.
    Take a manual snapshot of the current Quilt database instance. For an existing Quilt stack this resource has the logical ID "DB". Note the snapshot identifier ("Snapshot name" in the AWS Console, DBSnapshotIdentifier in the following AWS CLI command):
    aws rds describe-db-snapshots
    Be sure to take a manual snapshot. Do not rely on automatic snapshots, which are deleted when the parent stack is deleted.
  3. 3.
    Apply the quilt Terraform module to your new template and provide the snapshot identifier to the db_snapshot_identifier= argument.
    You must use a Quilt CloudFormation template that supports an existing database, existing search domain, and existing vpc in order for the terraform modules to function properly.
  4. 4.
    You now have a new Quilt stack with a configuration equivalent to your prior stack. Verify that the new stack is working as desired. Delete the old stack.

Security

All customer data and metadata in Quilt is stored in S3. It may also be cached in Elasticsearch Service (show in red in the diagram below). No other services in the Quilt stack store customer data.
We recommend using S3 encryption and Elasticsearch Service encryption at rest to provide maximum protection.
User email addresses are stored by the Identity Service in RDS Postgres (part of the Quilt stack). User email addresses are also sent through an encrypted channel to the customer support messaging system (Intercom).

Advanced configuration

The default Quilt settings are adequate for most use cases. The following section covers advanced customization options.

Setting the default role

The Quilt admin must log in and set the default role in order for new users to be able to sign up.

Single sign-on (SSO)

Google

You can enable users on your Google domain to sign in to Quilt. Refer to Google's instructions on OAuth2 user agents and create authorization credentials to identify your Quilt stack to Google's OAuth 2.0 server.
Copy the Client ID and Client secret to a safe place. Add <QuiltWebHost>/oauth-callback to authorized redirect URIs.

Active Directory

  1. 1.
    Go to Azure Portal > Active Directory > App Registrations.
  2. 2.
    Click "New Registration".
  3. 3.
    Name the app, select the Supported account types.
  4. 4.
    Click "Add a platform", "Web", and enter the Redirect URIs value <QuiltWebHost>/oauth-callback. Click "Save" at the bottom.
  5. 5.
    Once the application has been created you will need both its Application (client) ID and Directory (tenant) ID.
  6. 6.
    Go to "Client credentials" and create a new client secret. Note you will use the Value (and not the Secret ID).
  7. 7.
    Your AzureBaseUrl will be of the form https://ENDPOINT/TENANT_ID. In most cases ENDPOINT is simply login.microsoftonline.com. Reference Microsoft identity platform and OpenID Connect protocol and National clouds for further details.
    If AzureBaseUrl doesn't end in /v2.0 then append /v2.0 to it.
  8. 8.
    Click "Save".
  9. 9.
    Copy the Application (client) ID, Client secret Value, and AzureBaseUrl to a safe place.
  10. 10.
    Proceed to Enabling SSO.

Okta

  1. 1.
    Go to Okta > Admin > Applications > Applications
  2. 2.
    Click Create App Integration. A new modal window opens.
  3. 3.
    Assign Sign-in method radio button to OIDC - OpenID Connect.
  4. 4.
    Assign Application type radio button to Web Application.
  5. 5.
    Click the Next button.
  6. 6.
    Rename the default App integration name to Quilt or something distinctive for your organization to identify it.
  7. 7.
    Add the Quilt logo for user recognition.
  8. 8.
    Configure the new web app integration as follows:
    1. 1.
      For Grant type check the following: Authorization Code, Refresh Token, and Implicit (hybrid).
    2. 2.
      To the Sign-in redirect URIs add <QuiltWebHost>/oauth-callback URL.
    3. 3.
      Leave the Allow wildcard * in the login URI redirect checkbox unchecked.
    4. 4.
      Optionally add to the Sign-out redirect URIs (if desired by your organization).
    5. 5.
      For the Assignments > Controlled Access selection, choose the option desired by your organization.
  9. 9.
    Once you click the Save button you will have a new application integration to review.
    1. 1.
      If it's undefined, update the Initiate login URI to your <QuiltWebHost> URL.
    2. 2.
      Copy the Client ID, Secret, and Base URL to a safe place
  10. 10.
    Go to Okta > Security > API > Authorization servers
    1. 1.
      You should see a default entry with the Audience value set to api://default, and an Issuer URI that looks like the following:
      <MY_COMPANY>.okta.com/oauth2/default
  11. 11.
    Proceed to Enabling SSO

OneLogin

  1. 1.
    Go to Administration > Applications > Custom Connectors
  2. 2.
    Click New Connector
    1. 1.
      Name the connector Quilt Connector or something similar
    2. 2.
      Set Sign on method to OpenID Connect
    3. 3.
      Set Login URL to <QuiltWebHost>/oauth-callback
    4. 4.
      Click "Save"
  3. 3.
    Go back to Applications > Custom Connectors
  4. 4.
    Click Add App to Connector
  5. 5.
    Save the app (be sure to save it for the Organization)
  6. 6.
    Go to Applications > Applications > Your new app > SSO
    1. 1.
      Click SSO. Copy the Client ID, ClientSecret and Issuer URL to a safe place.
    2. 2.
      "Application Type" should be set to Web.
    3. 3.
      "Token Endpoint" should be set to POST.
  7. 7.
    Add Your new app to the users who need to access Quilt:
  8. 8.
    Proceed to Enabling SSO.

Enabling SSO in CloudFormation

Now you can connect Quilt to your SSO provider. In the Quilt template (AWS Console > CloudFormation > Quilt stack > Update > Use current template > Next > Specify stack details), under Auth Settings set the PasswordAuth to Enabled.
Next, select your SingleSignOnProvider from the dropdown list (one of Google, Okta, OneLogin, Azure).
Use the following settings (depending on your SSO provider):
CFT Parameter
Google SSO
Okta SSO
OneLogin SSO
Azure SSO
SingleSignOnClientId
Client ID
Client ID
Client ID
Application (client) ID
SingleSignOnClientSecret
Client secret
Secret
ClientSecret
Client secret Value
SingleSignOnBaseUrl
N/A
Base URL
Issuer URL
AzureBaseUrl
Be sure to set the default role as indicated above.

Preparing an AWS Role for use with Quilt

These instructions document how to set up an existing role for use with Quilt. If the role you want to use doesn't exist yet, create it now. For guidance creating IAM roles, see: IAM best practices, and the Principle of Least Privilege
Go to your Quilt stack in CloudFormation. Go to Outputs, then find RegistryRoleARN and copy its value. It should look something like this: arn:aws:iam::000000000000:role/stackname-ecsTaskExecutionRole.
Go to the IAM console and navigate to Roles. Select the role you want to use. Go to the Trust Relationships tab for the role, and select Edit Trust Relationship. The statement might look something like this:
{
"Version": "2012-10-17",
"Statement": [
"... one or more statements"
]
}
Add an object to the beginning of the Statement array with the following contents:
{
"Effect": "Allow",
"Principal": {
"AWS": "$YOUR_REGISTRY_ROLE_ARN"
},
"Action": "sts:AssumeRole"
},
Note the comma after the object. Your trust relationship should now look something like this:
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"AWS": "$YOUR_REGISTRY_ROLE_ARN"
},
"Action": "sts:AssumeRole"
},
"... whatever was here before"
]
}
You can now configure a Quilt Role with this role (using the Catalog's admin panel, or quilt3.admin.create_role).

S3 buckets with Service-Side Encryption using Key Management Service (SSE-KMS)

In order for Quilt to access and index buckets encrypted with SSE-KMS, you must do three things:
  1. 1.
    Add KMS Key Usage to Quilt Permission Boundary
  2. 2.
    Add Quilt Principals to KMS Key Policy
  3. 3.
    Add KMS Key Access to a Source=Quilt Role
NOTE: This will not work with the default Source=Custom Roles.

1. Add KMS Key Usage to Quilt Permission Boundary

By default, AWS does not allow anything in your account to access KMS. If you haven't done so already, create an IAM policy that explicitly enables KMS access.
{
"Version": "2012-10-17",
"Statement": {
"Effect": "Allow",
"Action": [
"kms:Decrypt",
"kms:GenerateDataKey"
],
"Resource": "arn:aws:kms:us-west-2:111122223333:key/*"
}
}
Go to CloudFormation > Your Quilt Stack -> Update -> Parameters and add the ARN of that IAM policy to ManagedUserRoleExtraPolicies at the bottom of the page:
If other policies are already in that field, you will need to add a comma before appending the ARN.

2. Add Quilt Principals to KMS Key Policy

In order for Quilt to index buckets with SSE-KMS, you must add certain principals to the corresponding key policy. Go to CloudFormation > Your Quilt Stack > Resources and look for IAM roles with the following logical IDs:
  • AmazonECSTaskExecutionRole
  • PkgEventsRole
  • PkgSelectLambdaRole
  • SearchHandlerRole
  • T4BucketReadRole
  • T4BucketWriteRole
Note the ARN for each of the above logical IDs and add an Allow statement similar to the following to the KMS key policy:
{
"Effect": "Allow",
"Principal": {
"AWS": [
"<RoleARN-1>",
...
"<RoleARN-N>"
]
},
"Action": [
"kms:Decrypt",
"kms:GenerateDataKey"
],
"Resource": "*"
}

3. Add KMS Key Access to Quilt Role

Finally, you need create a restricted policy that gives a Quilt role access to the keys for specific buckets, e.g:
{
"Version": "2012-10-17",
"Statement": {
"Effect": "Allow",
"Action": [
"kms:Decrypt",
"kms:GenerateDataKey"
],
"Resource": [
"arn:aws:kms:us-west-2:111122223333:key/1234abcd-12ab-34cd-56ef-1234567890ab",
"arn:aws:kms:us-west-2:111122223333:key/0987dcba-09fe-87dc-65ba-ab0987654321"
]
}
}
You can now create a Quilt Policy from this policy using the Catalog's admin panel. Afterwards, you can attach that Policy to a user-defined Quilt Role (which has Source=Quilt in the Roles panel, as opposed to system-defined Source=Custom Roles).

Backup and Recovery

All data and metadata in Quilt is stored in S3. S3 data is automatically backed up (replicated across multiple available zones). To protect against accidental deletion or overwriting of data, we strongly recommend enabling object versioning for all S3 buckets connected to Quilt.
No data will be lost if a Quilt stack goes down. The Quilt search indexes will be automatically rebuilt when buckets are added to a new stack.

Region Failure

To protect against data loss in the event of a region failure, enable S3 Bucket Replication on all S3 buckets.
The time to restore varies with storage needs, but a <2-hour recovery time objective (RTO) and <15 minute recovery point objective (RPO) are generally possible.
To restore Quilt in your backup region:
  1. 1.
    Create a new Quilt stack from the same CloudFormation template in the backup region.
  2. 2.
    Connect the replica buckets (in the backup region) to your Quilt stack. In the Quilt catalog, select "Users and Buckets"->"Buckets" and enter the bucket information.

Emergency Maintenance

Support

Support is available to all Quilt customers by:
Quilt guarantees response to support issues according to the following SLAs for Quilt Business and Quilt Enterprise customers.

Quilt Business

Text
Initial Response
Temporary Resolution
Priority 1
1 business day
3 business days
Priority 2
2 business days
5 business days
Priority 3
3 business days
N/A

Quilt Enterprise

Text
Initial Response
Temporary Resolution
Priority 1
4 business hours
1 business day
Priority 2
1 business day
2 business days
Priority 3
1 business days
N/A

Definitions

  • Business Day means Monday through Friday (PST), excluding holidays observed by Quilt Data.
  • Business Hours means 8:00 a.m. to 7:00 p.m. (PST) on Business Days.
  • Priority 1 means a critical problem with the Software in which the Software inoperable;
  • Priority 2 means a problem with the Software in which the Software is severely limited or degraded, major functions are not performing properly, and the situation is causing a significant impact to Customer’s operations or productivity;
  • Priority 3 means a minor or cosmetic problem with the Software in which any of the following occur: the problem is an irritant, affects nonessential functions, or has minimal impact to business operations; the problem is localized or has isolated impact; the problem is an operational nuisance; the problem results in documentation errors; or the problem is any other problem that is not a Priority 1 or a Priority 2, but is otherwise a failure of the Software to conform to the Documentation or Specifications;
  • Temporary Resolution means a temporary fix or patch that has been implemented and incorporated into the Software by Quilt Data to restore Software functionality.
